BNDS01

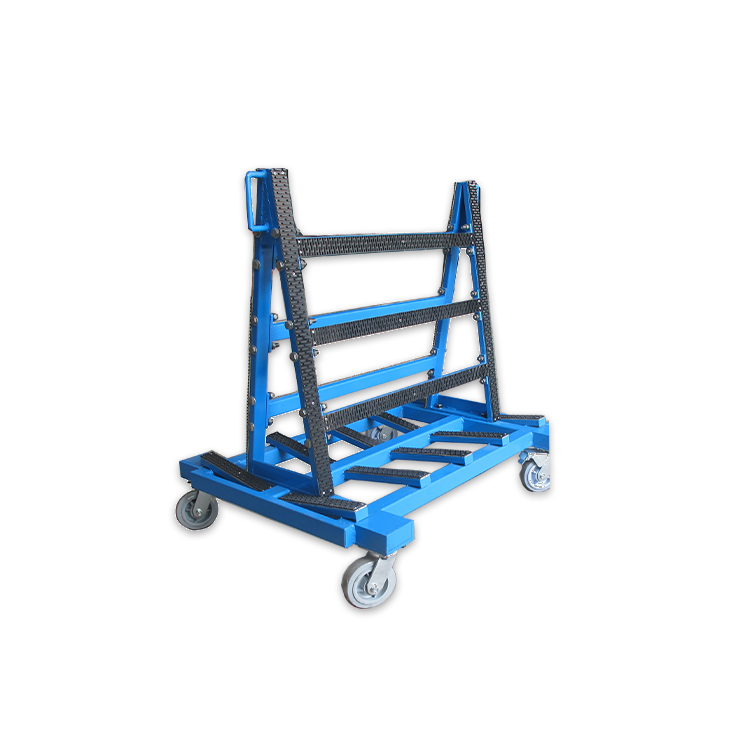

This design is used for the transportation and storage of the plate inside and outside the factory area. The surface of the bracket is covered with a rubber layer to protect the plate scratch.
Please call 86-0757-22818555 for information and order Consult
TECHNICAL PARAMETERS
| 型號(hào) Model NO. | BNSS01 | BNDS01 | AF1850QP | AF2440QP | TF2440PC | TF3050 |
| 兩邊寬度 Width of Each Side | 204.5mm | 204.5mm | 295mm | 323mm | 268mm | 268mm |
| 承重力 Working Load Limit | 600kgs | 750kgs | 4000kgs | 4000kgs | 1500kgs | 1500kgs |
| 凈重 Net Weight | 44.8kgs | 61.7kgs | 215kgs | 236kgs | 190kgs | 239kgs |
| 包裝尺寸 Package Dimensions | L1180×W560×H330mm | L1200×W840×H330mm | L1850×W1300×H320mm | L2450×W1240×H320mm | L2450×W1120×H430mm | L3050×W1120×H430mm |
